Video melting point meter MPT-V

產品品牌：

檢測項目：

產品詢盤：

咨詢熱線：0531-85868997 13325139791

Automatic video melting point tester is an indispensable testing equipment in food, medicine and chemical industry. It is used to test the melting point of drugs, reagents, spices, dyes and other organic crystalline substances.

產品細節

Summary:

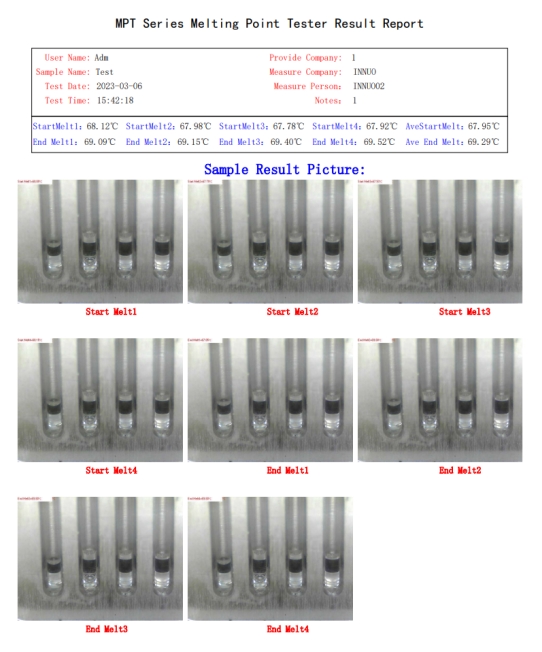

MPT series melting point meter adopts HD video shooting technology, which can directly and clearly display the image of sample melting process while temperature-controlled heating, and automatically collect the corresponding images of initial melting and final melting.

Comply with all pharmacopoeia test methods.

Technical advantages:

1. Built-in 2 megapixel HD camera (pixel optional, standard configuration 2 million), real-time sample melting process video.

2. 4 samples can be measured simultaneously.

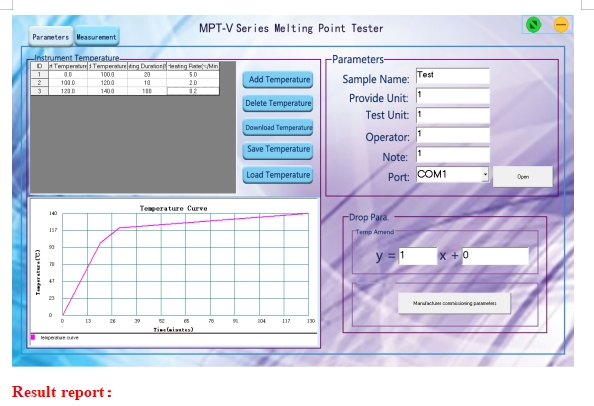

3. The linear heating rate is adjustable from 0.1℃ to 30.0℃.

4. Streamlined heat dissipation and exhaust duct design, rapid cooling and cooling, improve the efficiency of sample testing.

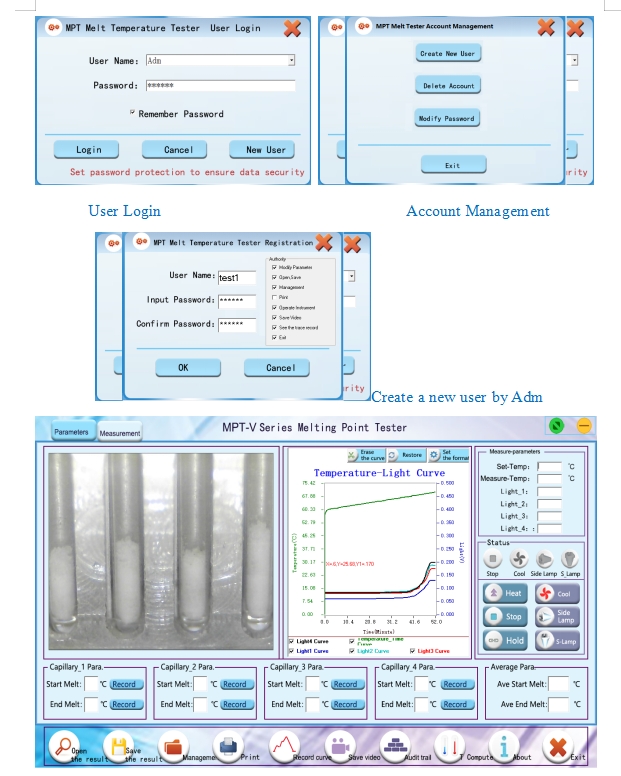

5. Powerful database management function, product test data classification management, automatic association of initial melting, final melting test pictures.

6. At the time of delivery, the temperature coefficient is corrected by standard sample. Customers can use it directly or calibrate it themselves.

7. Conforms to all pharmacopeia test methods.

8. Hierarchical user management and free permission allocation

9. Optional: Audit trail function.

Parameters:

Type	MPT- V1	MPT- V2
Detection method	Photoelectric automatic test (one-button operation)
Temperature resolution	0.1℃
Temperature range	RT-350℃	RT-400℃
Accuracy	±0.5℃（RT-200℃） ±1℃（200℃-350℃/400℃/420℃）
Repeatability	±0.3℃（when heating rate is 0.2℃/min）
Temperature correction	Standard sample is available for calibration of equipment temperature
Heating rate	0.1℃-30℃/min
Sample quantity	Capillary method: 4 samples at a time
Capillary size	Inner diameter 1mm, wall thickness 0.1mm-0.15mm
Hd camera	2 million pixels
Data collection	1. Real-time acquisition of change video data, and automatic storage, reduce human error 2. Support data classification management 3. Optional: Audit tracking
Power	220VAC-50Hz 130W
